PS5 Power Supply Unit

$66.00$99.00

PS5 Power Supply Units ADP-400DR, ADP-400ER, ADP-400FR, ADP-400GR
SKU: SKU590 Category:

Description

Listed are 4 types of replacement PS5 power supply unit:

All models of PS5 Power Supply Unit are unique and not compatible with each other. Please identify the PS5 power supply unit as listed below and make sure to select a right one for your model of PS5 :

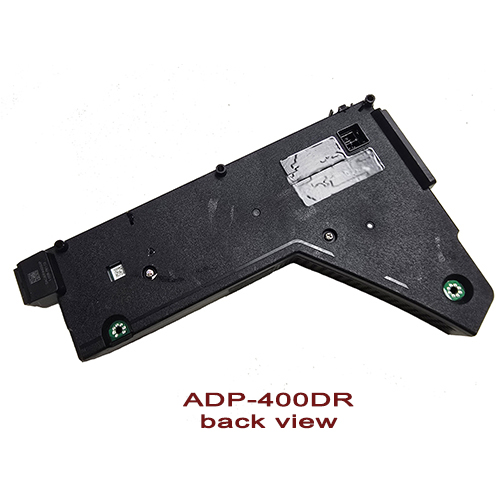

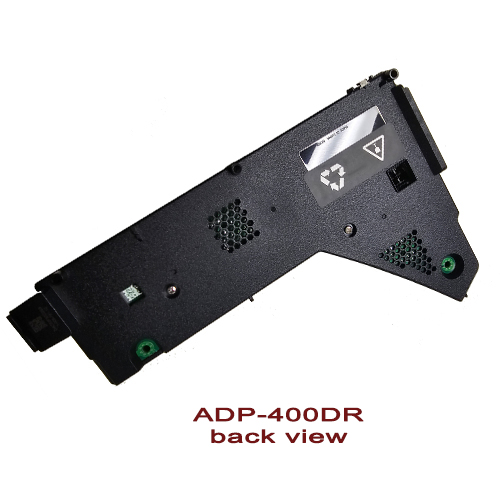

ADP-400DR   for use in PS5 CFI-1002, genuine , as new pulled from PS5 console,  tested before shipping

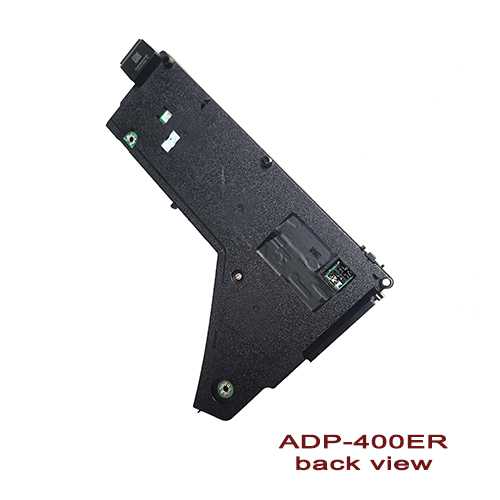

ADP-400ER   for use in PS5 CFI-1102, genuine , as new, pulled from PS5 console, tested before shipping

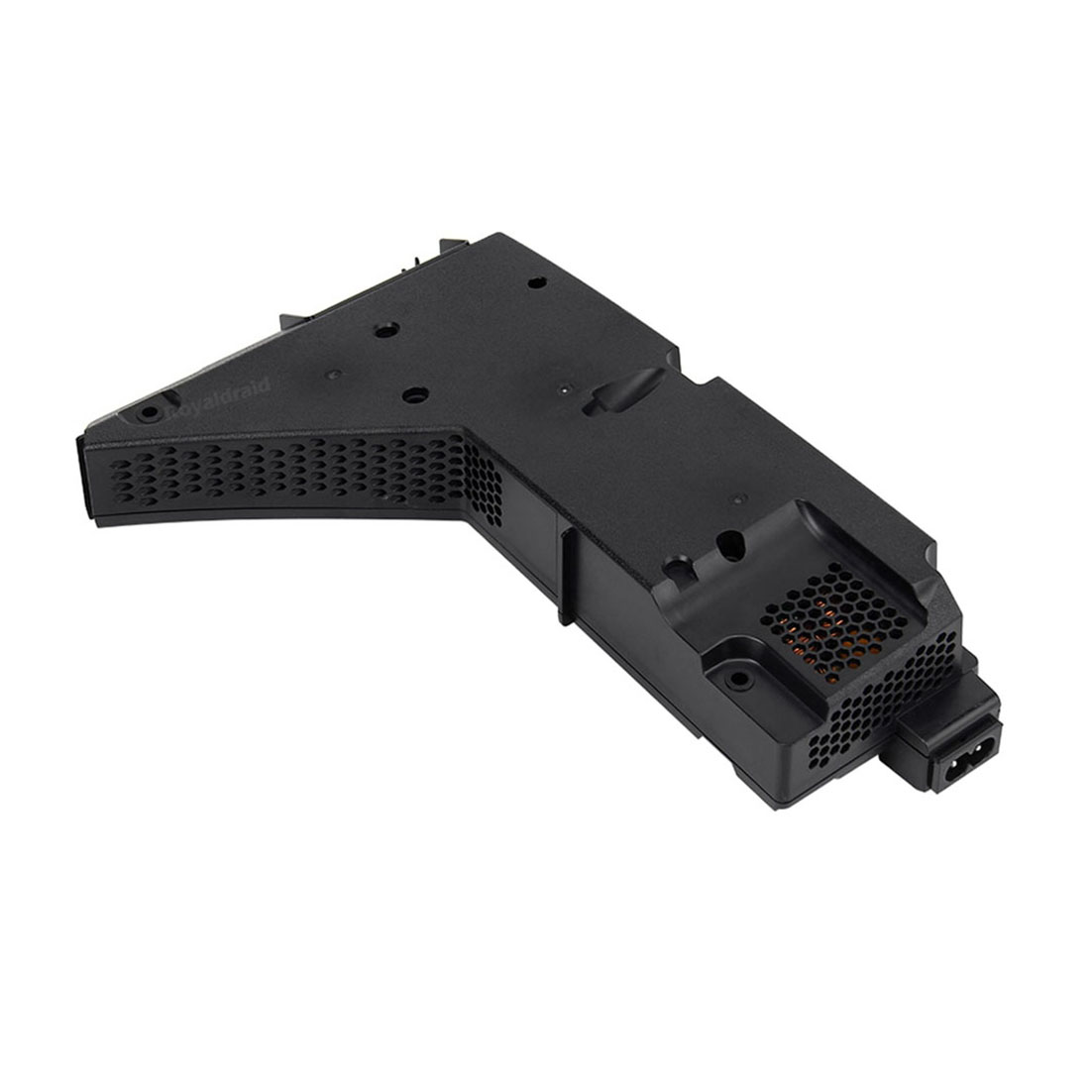

ADP-400FR    for use in PS5 CFI-1202, brand new, third party, tested before shipping

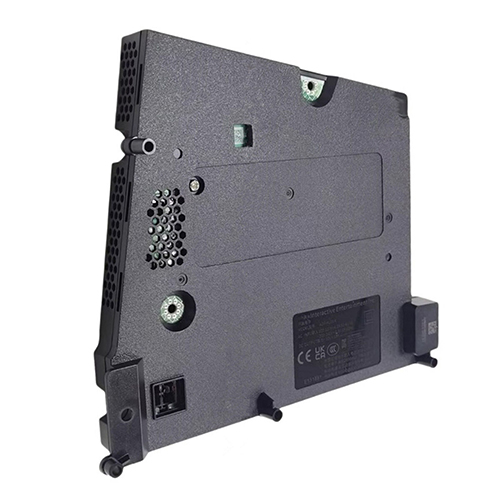

ADP-400GR   for use in PS5 CFI-2002 (slim) , brand new, third party, tested before shipping.

( The ADP-400GR is for the PS5 slim console only )

Specifications:

AC input: 100-127V   ~ 4.5A    50/60HZ
20V-240V  ~ 2.3A    50/60HZ

DC output:  +12V  @ 31 A

We ship from Sydney, orders placed before 3pm during the week days will get the same day dispatch !

How to identify a possible faulty power supply ?

The PS5 power supply unit (PSU) can be easily tested with a multimeter. Simply removed the PSU from the motherboard and measure the voltage across the output pins, it should read around 12V to be qualified as a good PSU .

If a PS5 console does not power on ( no sign of power at all ) , the PSU is not always the issue.  Fixing such a dead PS5 console could be a lot more complicated than just replacing its PSU. We strongly recommend that buyer need to do a proper testing on the existing PSU before making a decision to purchase a replacement.

What else could be wrong if the power supply unit is not faulty?

When the PS5 console showing no sign of power, the problem could be the motherboard that has a short circuit on the 12V power rail,  which also shorted the PSU and made it going to self-protection mode, or some other issues that resulted missing 3.3V stand-by voltage.

The PSU is certainly not faulty if a PS5 won’t turn on but still beeps when the power switch is pressed for once or multiple times. It’s the motherboard that has one or more components failure as mentioned above.

Additional information

Weight 0.3 kg
